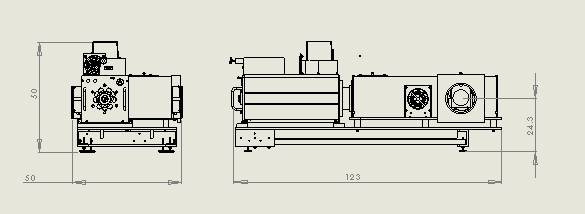

    Fully Reflective Solar Simulators

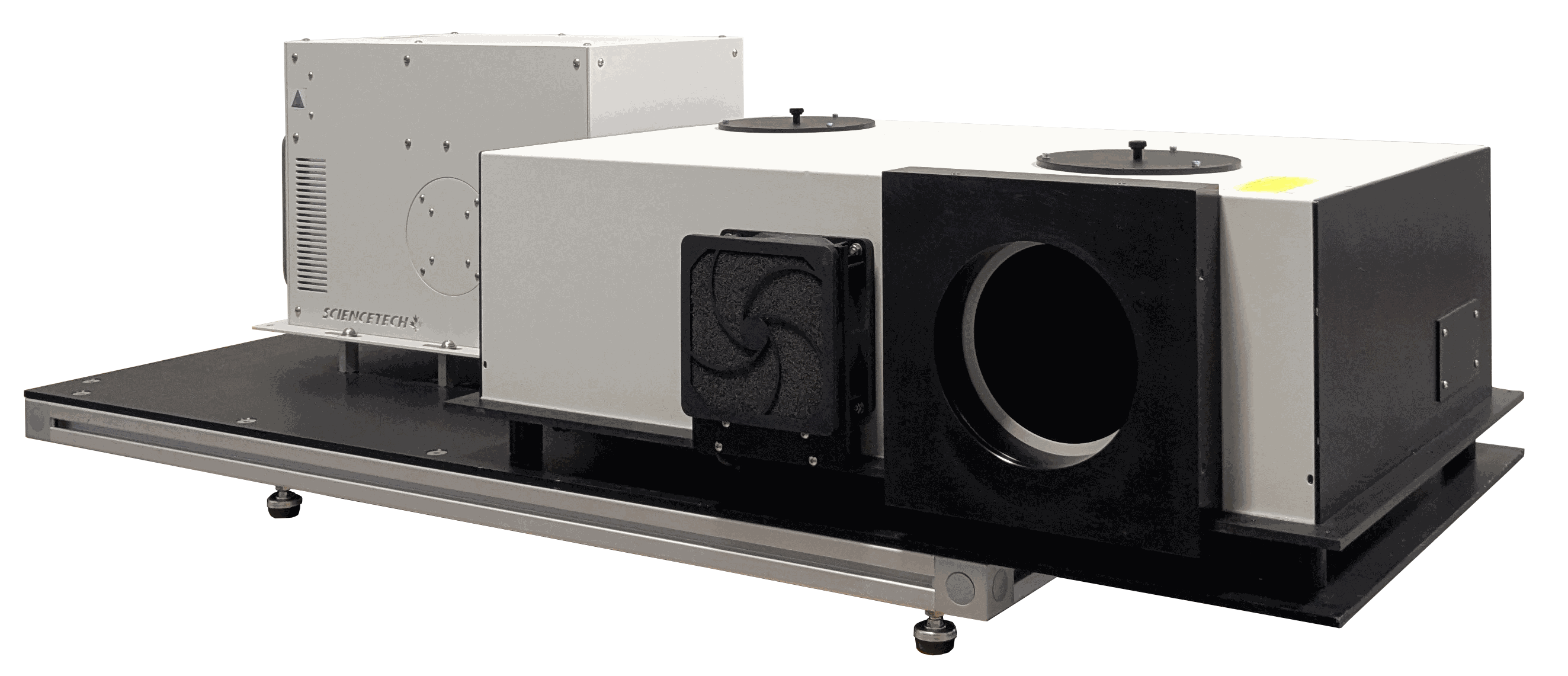

    Odoo image and text block

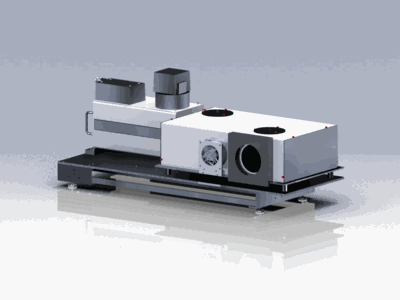

    Class BBA Solar Simulators


    All of Sciencetech's  Fully Reflective  line of solar simulators feature a design that does not require lenses or diffusers to make the output uniform at the target plane. As a result, the solar simulator is able to reach its optimal throughput efficiency and reach a BBA class rating for every fully reflective solar simulator we provide, making Sciencetech's line of solar simulators substantially more optically efficient than our competitor's designs.


    Contact us for more info or request a quote

    sales@sciencetech-inc.com

    Fill form to request a quote


    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    Class: BBA, ASTM E927-19
    Target Size: 152 mm diameter
    Working Distance: 900 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE1600-A-T (included)
    Lamp: 1600 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

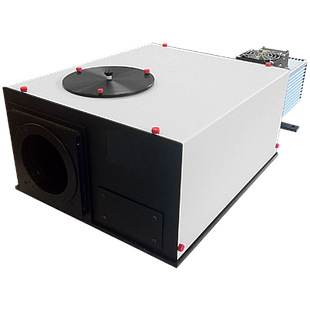

    Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.6kW includes air-cooled arc lamp housing, 1600 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 220-240 V, 50/60 Hz, 12.1-9.0 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    In Stock
    Class: BBA, ASTM E927-19
    Target Size: 152 mm diameter
    Working Distance: 900 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE1600-A-T (included)
    Lamp: 1600 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.6kW includes air-cooled arc lamp housing, 1600 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 220-240 V, 50/60 Hz, 12.1-9.0 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 49,489.00 49489.0 USD

    Price Valid only in North America

    Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.

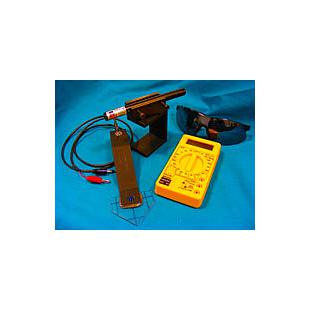

    Sciencetech Solar Simulator System Alignment Kit includes:
    1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
    Can be used on all of Sciencetech's fully reflective Solar Simulators.
    Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
    Sciencetech Solar Simulator System Alignment Kit includes:
    1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
    Can be used on all of Sciencetech's fully reflective Solar Simulators.
    $ 556.00 556.0 USD

    Price Valid only in North America

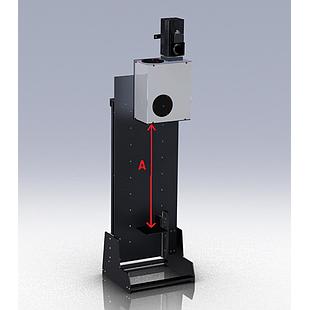

    This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing.
    This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing.
    $ 1,160.00 1160.0 USD

    Price Valid only in North America

    Class: BBA
    Target Size: 50 mm (2”) diameter
    Working Distance: 760 mm (31”) ± 25mm (1”)
    Collimation: 2.5 degrees half angle
    Power Supply: Sciencetech PS-XE150-A-T
    Spectral Range 180 - 4400 nm

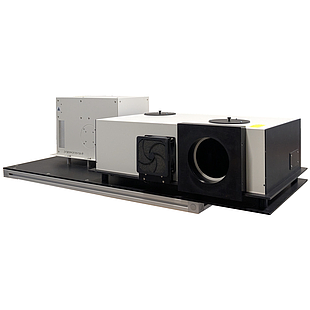

    Sciencetech is pleased to offer the SS-150W model 150 W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-150W includes air-cooled arc lamp housing, 150 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76 × 76mm (3" × 3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters, such as dichroic filters and bandpass filters, are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    In Stock
    Class: BBA
    Target Size: 50 mm (2”) diameter
    Working Distance: 760 mm (31”) ± 25mm (1”)
    Collimation: 2.5 degrees half angle
    Power Supply: Sciencetech PS-XE150-A-T
    Spectral Range 180 - 4400 nm

    Sciencetech is pleased to offer the SS-150W model 150 W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-150W includes air-cooled arc lamp housing, 150 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76 × 76mm (3" × 3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters, such as dichroic filters and bandpass filters, are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 20,435.00 20435.0 USD

    Price Valid only in North America

    Class: BBA, ASTM E927-19
    Target Size: 76 mm diameter
    Working Distance: 450 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE500-A-T (included)
    Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 100-240 V/ 50/60 Hz, 9.1-3.8 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    In Stock
    Class: BBA, ASTM E927-19
    Target Size: 76 mm diameter
    Working Distance: 450 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE500-A-T (included)
    Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 100-240 V/ 50/60 Hz, 9.1-3.8 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 46,459.00 46459.0 USD

    Price Valid only in North America

    Class: BBA, ASTM E927-19
    Target Size: 127 mm diameter
    Working Distance: 750 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE1000-A-T (included)
    Lamp: 1000 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.0kW includes air-cooled arc lamp housing, 1000 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 220-240 V/ 50/60 Hz, 7.5-6.3 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    In Stock
    Class: BBA, ASTM E927-19
    Target Size: 127 mm diameter
    Working Distance: 750 mm
    Collimation: 3 degrees, half angle
    Power Supply: PS-XE1000-A-T (included)
    Lamp: 1000 W Xenon Arc Lamp, Ozone free (included)
    Air Mass Filter: AM1.5G (included)

    Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.0kW includes air-cooled arc lamp housing, 1000 W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

    This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

    Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

    Requires 220-240 V/ 50/60 Hz, 7.5-6.3 A, Fused 15 A, 250 V
    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
    $ 46,459.00 46459.0 USD

    Price Valid only in North America
