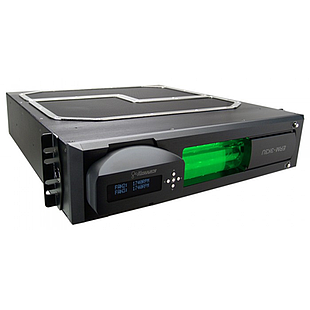

TC-1000-120 is a compressor-refrigerant recirculating liquid chiller rated at 900W @25°C liquid & ambient. Chiller control is based on one of four configurable temperature set-points, including the option to lock liquid to ambient for avoiding condensation or to an external K-type thermocouple sensor (not included).

Coolant flow rate, temperature, and reservoir level are monitored.

Cooling capacity: 900W @ 25°C liquid/ambient
Temperature options: liquid set-point, external thermocouple set-point, liquid and ambient delta-T, external thermocouple and ambient delta-T; toggle °C/°F
Designed for an operational temperature range of 0-40°C (ambient and liquid)
Power input: 120VAC, 60Hz (Only)

This item contains all the necessary tubing and connections to connect to any of Sciencetech -L (liquid cooled) cell chucks.

Keep unit upright at all times, and for at least 24 hours before applying power to ensure sufficient oil reaches the compressor.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 3,499.00

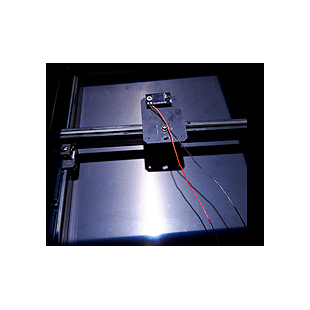

Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125

$ 7,475.00

Target size: 350 × 350mm
DAQ: 16 bit
Detector size : 20 × 20mm
Detector Type: SCI-REF-LR
Connectivity: 1 × USB2.0
Power Requirements: 120 VAC × 4 A / 220 VAC × 2 A
Dimensions: 600 × 600 × 125

Includes SciMeasurementStage software.

$ 6,485.00

Target size: 100x100mm
DAQ: 16 bit
Detector size : 20x20mm (apertured to 12.5x12.5mm)
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 200x200x125

$ 4,325.00

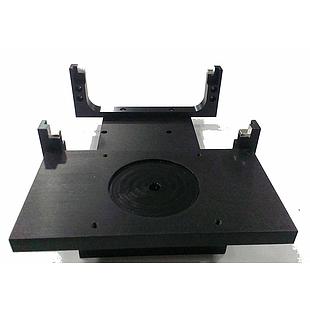

The SCC-6-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

Working Area: 15 × 15 cm (6" × 6")
Baseplate Size: 16.5 × 16.5 cm (6.5" × 6.5")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A

$ 3,499.00

TC-1000-220 is a compressor-refrigerant recirculating liquid chiller rated at 900W @25°C liquid & ambient. Chiller control is based on one of four configurable temperature set-points, including the option to lock liquid to ambient for avoiding condensation or to an external K-type thermocouple sensor (not included).

Coolant flow rate, temperature, and reservoir level are monitored.

Cooling capacity: 900W @ 25°C liquid/ambient
Temperature options: liquid set-point, external thermocouple set-point, liquid and ambient delta-T, external thermocouple and ambient delta-T; toggle °C/°F
Designed for an operational temperature range of 0-40°C (ambient and liquid)
Power input: 220VAC, 50-60Hz

This item contains all the necessary tubing and connections to connect to any of Sciencetech -L (liquid cooled) cell chucks.

Keep unit upright at all times, and for at least 24 hours before applying power to ensure sufficient oil reaches the compressor.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 3,499.00

Sciencetech's Model [210-REC] is a Cooling Water Recirculator. It can sink up to 2500W of heat.

-Dissipates up to 2500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

Contact for Pricing

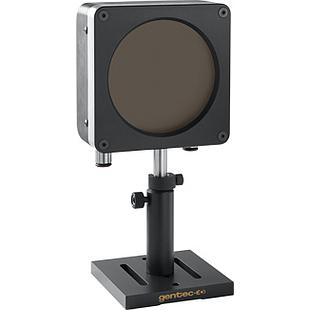

4kW max average power, 100mm aperture, water-cooled. Doesn't require monitor, includes USB cable and PC-HP application software.

Sensitivity 0.4 mW/W,
rise time 7 sec,
spectral range 0.19-20um.

$ 7,911.00

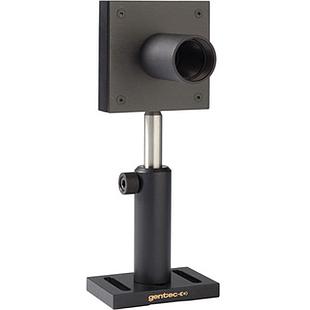

This Broadband Thermopile Detector allows the measurement of infrared light in the 0.19 – 20 µm range. This detector has a 12mm diameter sensor, measures up to 3 W (0.5 uW NEP). Please note that this detector head requires either an external display controller or computer interface (such as the UNO-1, sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

This thermopile is recommended for smaller light sources (collimated 500W arc lamps and below) and standard solar simulators (<5 Suns, <500 mW/cm2).

$ 1,727.00

Sciencetech's (160-REC) is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 900W of power from your light source.

-Dissipates up to 900W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

$ 2,016.00
