Optical Components

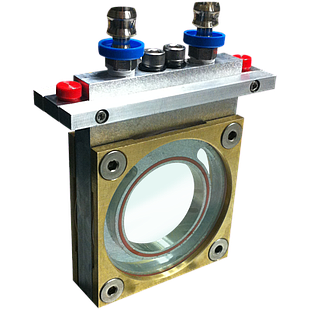

This standard optical liquid filter is equipped with BK7 windows (350 to 2000 nm). Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.

$ 2,221.00

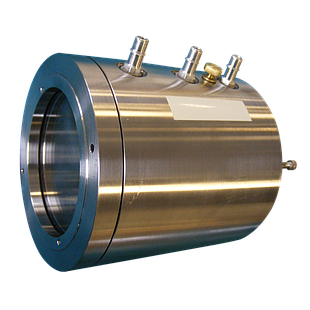

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light. This allows it to be used for UV applications. Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.

$ 2,221.00

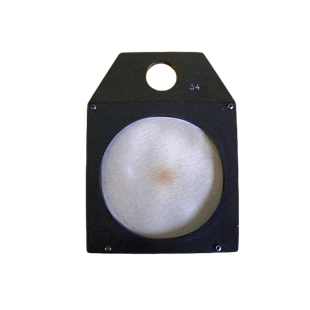

This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 0.25, 0.5, 0.75 and 1 of maximum irradiance for the AX Lightline system.

$ 354.00

This high-powered filter blocks UV light below 320 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 404.00

This high-powered filter is designed for band blocking of near-infrared radiation.

This filter contains a hot mirror for filtering out IR light to remove thermal heat on the target. However, standard hot mirrors also remove UV light as a side-effect which mean it cannot be used in UV applications. This special hot mirror removes IR light between 730-1100nm while preserving UVA and UVB light (280-400nm) in addition to visible light. This filter is ideal for Sciencetech UV solar simulators where the filtering of thermal heat on the target is desired and preservation of UVA and UVB light is required. This filter is intended for use at 0 degree angle of incidence.

This filter is mounted in Sciencetech FT style filter mount with a 73 mm diameter clear aperture.

Please note this filter does not eliminate all thermal heat in the IR range as this filter stops at 1,100nm. Hence IR heat beyond 1,100nm still pass through. To remove more IR light see Sciencetech's range of IR water filters or contact a Sciencetech application scientist to learn about other options.

$ 606.00

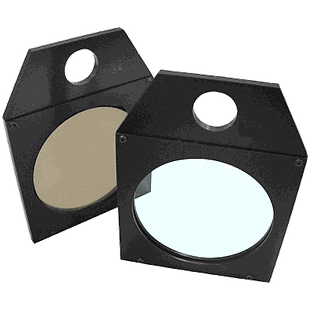

An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

$ 4,174.00

This high-powered filter blocks visible light. This filter passes 280-390 nm and blocks 420-750 nm. This filter is designed for 0 degree angle of incidence. This filter is mounted in a FT style filter holder and has a clear aperture of 73 mm diameter.

$ 2,020.00

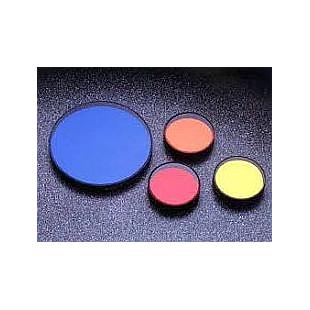

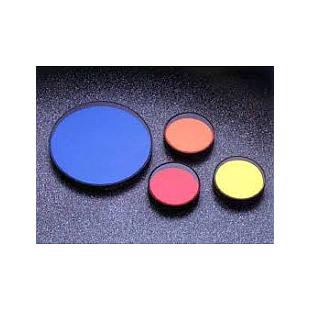

Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

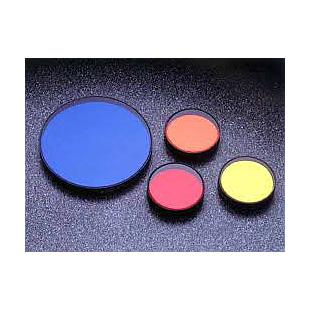

Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

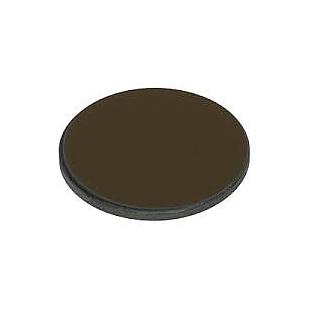

Set of 6 optical density filters in values of 0.15, 0.3, 0.4, 0.6, 0.9, and 2.5. Each is 25mm diameter and unmounted.
These are absorption filters (as opposed to reflective neutral density).

$ 354.00

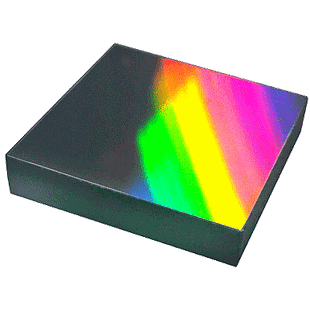

Wavelength range: 250-800 nm
Dispersion: 8 nm/mm (When used with 9030 monochromator)

$ 1,510.00

Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm

$ 537.00

Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)

$ 909.00

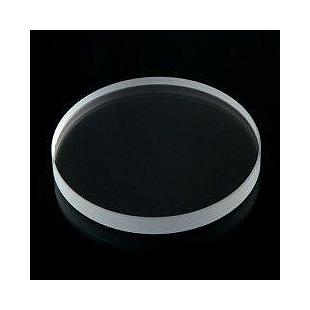

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.

$ 525.00

Wavelength range: 400-1600 nm
Dispersion: 16 nm/mm (When used with 9030 monochromator)

$ 1,609.00

A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 8,075.00

This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.

$ 30.00

Wavelength range: 300-1200 nm
Dispersion: 12 nm/mm (When used with 9030 monochromator)

$ 1,465.00

Wavelength range: 200-600 nm
Dispersion: 8 nm/mm (When used with 9030 monochromator)

$ 1,768.00
