Accessories / Parts

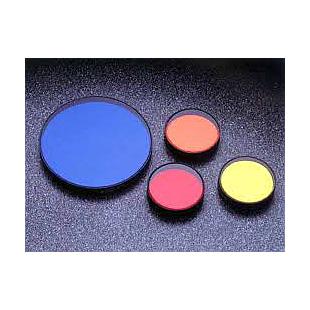

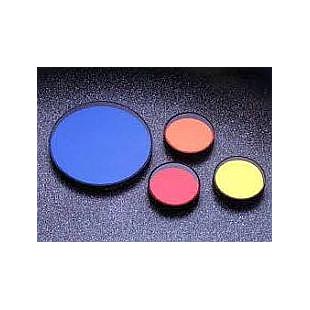

Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 263.00

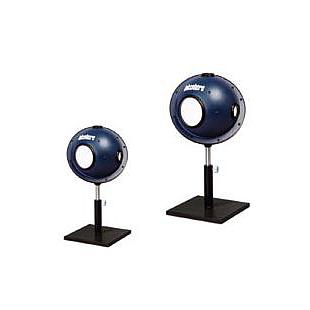

Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

$ 3,718.00

Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V

$ 323.00

Active Area: 100mm^2 (10 x 10mm)
Rise Time: 150ns
NEP: 1.5 x 10^(-14) W/Hz^(1/2) @ 960nm
Dark Current: 200pA @ 5V
Junction capacitance: 380pF @ 5V

$ 323.00

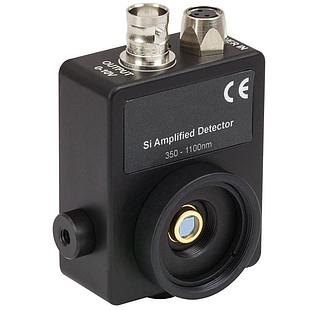

Material: Si
Wavelength Range: 350-1100
Detector Size: 3.6 x 3.6mm
Gain (Fixed): 8 x 10 dB steps
Bandwidth Range: DC - 17MHz
NEP: 2.1x10^(-12) to 7.7x10^(-11) W/Hz^(1/2)

$ 657.00

Material: Si
Wavelength Range: 350-1100
Detector Size: 0.8mm diameter
Gain (Fixed): 100kV/A
Bandwidth Range: DC - 50MHz
NEP: 6.5x10^(-11) W/Hz^(1/2)

$ 808.00

Material: Si
Wavelength Range: 200-1100 nm
Detector Size: 1.0 mm diameter
Gain: Hi-Z Load, 10 kV/A or 50 Ohm Load, 5 kV/A
Bandwidth Range: DC - 150 MHz
Rise Time: 2.3 ns
NEP: 29.2 pW/Hz^1/2
Peak Response: 0.44 A/W (typical)
Peak Wavelength: 730 nm (typical)
Operating Temperature Range: 1- to 50C

$ 638.00

Active Area: 13mm^2 (3.6 x 3.6mm)
Wavelength Range: 350-1100nm
Rise Time: 14ns
NEP: 1.6x10^(-14) W/Hz^(1/2)
Dark Current: 0.35nA
Junction Capacitance: 40pF

$ 566.00

Rise/Fall Time: 14 ns
Active Area: 13mm^2 (3.6 x 3.6mm)
NEP: 1.6E-14 W/Hz^(1/2)
Dark Current: 0.35 nA
Material: UV-enhanced Si
Junction Capacitance: 40pF @5V

$ 364.00

Rise/Fall Time: 450ns/45ns
Responsivity: 0.50 A/W
Active Area: Diameter = 9mm
NEP: 5.5E-14 W/Hz^(1/2)@5V
Dark Current: 1.0uA@5V
Material: UV-enhanced Si
Junction Capacitance: 1.75nF @0V

$ 626.00

Rise/Fall Time: 10ns
Active Area: 13mm^2 (3.6x3.6mm)
NEP: 1.2x10^(-14) W/Hz^(1/2)
Dark Current: 0.3nA
Material: Si
Junction Capacitance: 65pF @5V

$ 364.00

Rise/Fall Time: 45ns
Active Area: 100mm^2 (Diameter = 11.0mm)
NEP: 5.5x10^(-14) W/Hz^(1/2)
Dark Current: 1.0uA
Material: Si
Junction Capacitance: 1.75nF @0V

$ 399.00

The IRE-12 a coiled filament operating at approximately 900 degrees Celsius when powered with 10 watts. The radiating element is a coil of resistance wire which has a high emissivity in the Infrared spectral region. The coil is supported by a grooved cylindrical substrate of alumina, resulting in the windings being electrically insulated from each other. This contributes to a more uniform radiating source. The unit does not require operation in a sealed atmosphere. The header is fabricated from cold-rolled steel. The support pins are hermetically sealed in glass.

$ 266.00

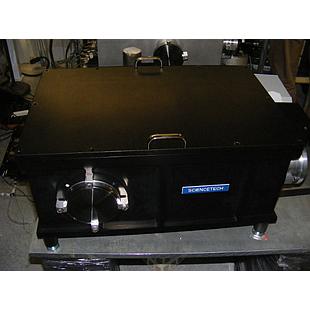

This is an external transmission and reflectance sample chamber that can be mated to an output port of the SPS-series FTIRs. This sample chamber allows small samples (such as cuvettes or thin films) to be studied in both reflection and transmission. The sample chamber shares the vacuum environment with the FTIR, but an optional window or vacuum gate (sold separately) allows the chamber to be isolated from the FTIR. The sample chamber utilizes reflective aspheric optics with gold coating for excellent far infrared and terahertz operation.

Contact for Pricing

This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead

$ 222.00

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled 1.6K
5u - 2000u spectral range
Liquid Nitrogen required in outer jacket (dual stage cooling)
2.5 mm diameter diamond absorber
0.5" F/3.8 diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

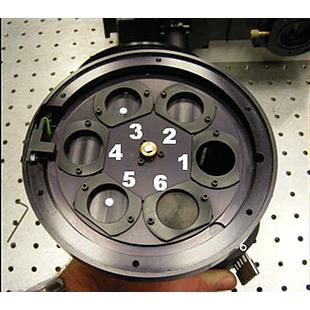

Filterwheel Position #1 - Long pass 5micron cut-on
Position #2 - Wedged P13 filter (13micron cut-on long pass)
Position #3 - Wedged C103 filter (103 micron cut-on long pass filter)
Wedged Diamond window Diameter = 25.0mm

$ 54,883.00

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders of magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled to 4.2K
Liquid Nitrogen required in outer jacket (dual stage cooling)
Response for 20~100um, with some sensitivity up to 300um
0.5" diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

See below for more specifications.

Contact for Pricing

4kW max average power, 100mm aperture, water-cooled. Doesn't require monitor, includes USB cable and PC-HP application software.

Sensitivity 0.4 mW/W,
rise time 7 sec,
spectral range 0.19-20um.

$ 7,990.00

A standard single-element detector mount for Sciencetech's line of monochromators and/or spectrometers. This quick release mount comes complete with Sciencetech's quick release mount (125-8012) as well as a quick release flange which mounts to a detector or component. The quick release flange has an internal 1.035-40 thread which can be used to mount Sciencetech's 525-5 line of detectors as well as other common optical components such as Thorlabs 1" lens tubes.

Please note that this mount will not work with dewer style detectors. If you are uncertain about what type of detector mount your system needs, please contact your Sciencetech representative.

$ 183.00

45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The cold mirror eliminates IR (thermal) light on the sample (Transmission > 85% for the region 800 - 1200nm, Reflection >90% for the region 425 - 650nm)

$ 989.00
