Accessories / Parts

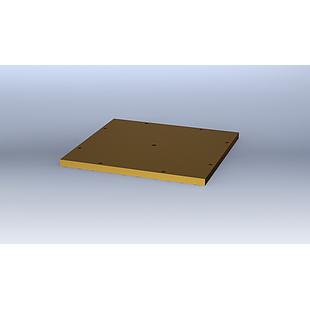

Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.

$ 349.00

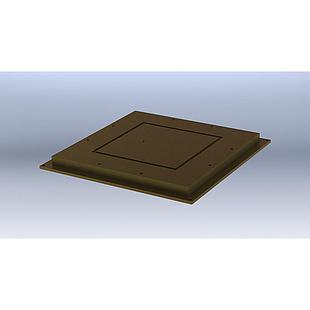

The SCC-3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
This cell chuck can be used with Sciencetech's PTS systems

Working Area: 7.6 × 7.6 cm (3" x 3")
Baseplate Size: 9 × 9 cm (3.5" × 3.5")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A

$ 2,499.00

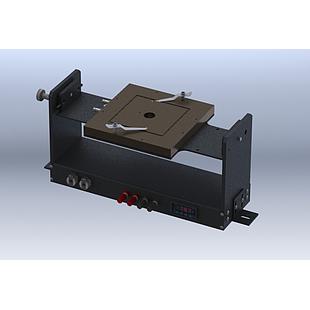

The SCC-6-L-F cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

The SCC-6-L-F is a reversible chuck that allows you to make electrical contacts to the back of your device under test and flip the chuck for back-illumination.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 15 × 15 cm (6" x 6")
Baseplate Size: 16.5 × 16.5 cm (6.5" × 6.5")
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 3,999.00

TC-1000-220 is a compressor-refrigerant recirculating liquid chiller rated at 900W @25°C liquid & ambient. Chiller control is based on one of four configurable temperature set-points, including the option to lock liquid to ambient for avoiding condensation or to an external K-type thermocouple sensor (not included).

Coolant flow rate, temperature, and reservoir level are monitored.

Cooling capacity: 900W @ 25°C liquid/ambient
Temperature options: liquid set-point, external thermocouple set-point, liquid and ambient delta-T, external thermocouple and ambient delta-T; toggle °C/°F
Designed for an operational temperature range of 0-40°C (ambient and liquid)
Power input: 220VAC, 50-60Hz

This item contains all the necessary tubing and connections to connect to any of Sciencetech -L (liquid cooled) cell chucks.

Keep unit upright at all times, and for at least 24 hours before applying power to ensure sufficient oil reaches the compressor.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 3,499.00

Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 1,529.00

45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)

$ 788.00

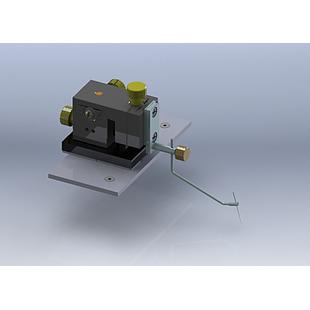

Sciencetech's (SCP-SP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes thumbscrews for adjustment. 0.3” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 1,139.00

An F/2 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,999.00

An F/4 off-axis parabolic mirror assembly with protected gold mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 950.00

An F/2 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 1,050.00

An F/4 off-axis parabolic mirror assembly with protected aluminum mirror coating. This assembly is intended to attach to Sciencetech's LH-S lamp houses (also works with obsolete 201C-100 lamp houses). The assembly includes a kinematic three point adjuster to optimize optical alignment. A standard hole pattern on the input and output ends of the assembly can be used to mount this optical component to custom or third party systems with appropriate bracketing.

$ 850.00

Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"

$ 1,500.00

Sciencetech's (SCP-MP-T) is a micropositioning probe station with a magnetic base and a tungsten needle-tip probe. It utilizes micrometer heads for accurate repeatable adjustment. 0.5” is the magnitude of fine adjustment for this probe.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 2,601.00

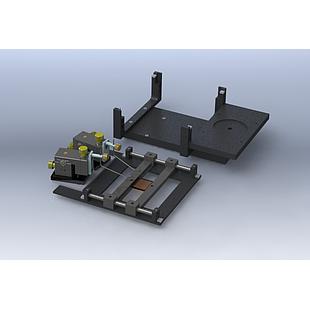

Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.

$ 1,629.00

Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.

$ 1,029.00

Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.

$ 949.00

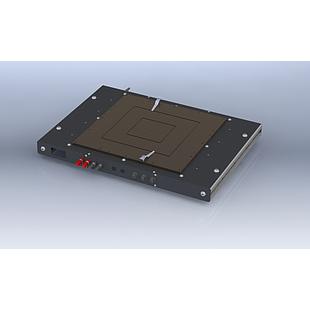

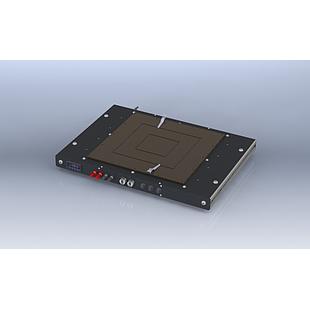

The SCC-12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 30 × 30 cm (12" × 12")
Baseplate Size: 33 × 33 cm (13.25" × 13.25")
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 4,899.00

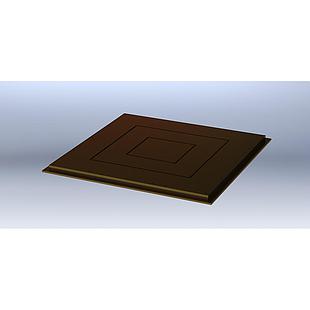

The SCC-12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 × 30 cm (12" × 12")
Baseplate Size: 33 × 33 cm (13.25" × 13.25")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump

$ 2,799.00

The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's solar simulators such as the SF or LightLine, as well as Sciencetech's line of LH or XLH lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.

$ 2,099.00

This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

$ 299.00
