Accessories / Parts

.

$ 500.00

.

$ 500.00

.

$ 500.00

Wavelength range: 200-600nm
Dispersion: 8nm/mm (When used with 9030 monochromator)

$ 1,750.00

Wavelength range: 300-800nm
Dispersion: 8nm/mm (When used with 9030 monochromator)

$ 1,750.00

.

$ 4,000.00

.

$ 730.00

.

$ 4,000.00

.

$ 730.00

.

$ 500.00

.

$ 600.00

This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately - see below) to show the measured power. The price shown includes the detector head, post, post holder, and base only.

This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).

$ 1,418.00

This Broadband Thermopile Detector allows the measurement of total broadband radiation emitted by a light source. It could also be used to measure the light power density on a surface (in W/cm2) which is particularly useful for uniformity measurements and for checking solar simulator performance. This detector has a 19mm diameter sensor and picks up all wavelengths between 190-11μm (UV-VIS-IR). Please note that this detector head requires either an external display controller or computer interface (sold separately) to show the measured power. The price shown includes the detector head, post, post holder, and base only. (1mW NEP).

This thermopile is recommended for high-powered light sources (such as focused 500W + arc lamps) and concetrator solar simulators (5 Suns +, 500 mW/cm2).

$ 1,375.00

This external transmission/reflectance sample chamber can be mated to the output port of a Sciencetech FTIR system. This chamber allows small samples to be studied in both transmission and reflectance modes, at temperatures ranging from approximately -20° Celsius to room temperature. The sample chamber utilizes gold coated aspheric optics for excellent signal in the infrared and terahertz region.

Contact for Pricing

Rotating blade chopper including a 2 slot blade for frequency range of 4-200Hz. Higher frequency ranges available with other blades. Includes enclosure and driver. This chopper accepts a maximum 1" diameter collimated beam at the chopper port. For 1" diameter collimated beams the CH-MC-E-1D1D chopper is usually used. The CH-MC-E-1D2D chopper is usually used in cases where a convergent beam enters the chopper housing from a 2" optical tube. 1-D slip ring with H4 hole pattern on input face, 2-D slip ring with S4 hole pattern on output face for integration with Sciencetech modular instruments.

This chopper is compatible with SciSpec and SciPV software. For integration into Sciencetech instruments or larger integrated systems see SciencetechCOM and SciAX software.

Third party control software is included with this chopper but is not supported by Sciencetech.

$ 3,099.00

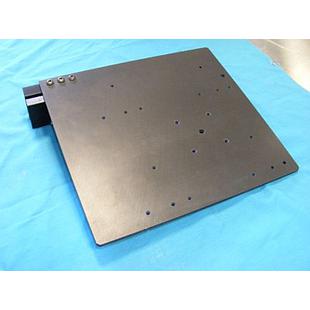

A sample platform designed to operate for any of Sciencetech's line of Fully Reflective solar simulators. The sample tray is intended to be used with SS0.5k-SS1.6k simulators with downward facing beams. For a complete downward facing package for your SS0.5k-SS10.6k fully reflective solar simulator please see product (DFS-SS).
This sample platform includes a clamp for maintaining its position. The sample platform can be used to mount a variety of cell chucks offered by Sciencetech. Please speak with your authorized Sciencetech technical sales staff member to discuss cell chucks, probes, vacuum, or water cooling options.

$ 350.00

A Beam Turning Assembly can be mounted to the output port of many of Sciencetech's Solar Simulators to redirect the light downwards onto a sample platform. The Beam Turner may also be used to adjust the light path to any 90° angle perpendicular to the horizontal output beam.

$ 1,400.00

Sciencetech's (160-REC) is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 900W of power from your light source.

-Dissipates up to 900W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

$ 2,016.00

An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. THe best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control the shutter can be controlled via a toggle switch on the shutter controller box.

This shutter can be used with any high powered light source and can effectivley block a 5" diameter beam. See the brochure information for a mounting pattern.

This device can be controllable through Sciencetech's new line of Touch Screen power supplies (including automated explosure time control).
Please note leaving the shutter closed for exteremly long periods of time while the arc lamp is on may cause damage to the motorized components.

$ 1,295.00

An external shutter appropriate for LH and XLH series lamp houses. This high speed shutter is computer controlled. The shutter includes a power supply, electronics module, and cable. Clear Aperture = 50mm
Minimum exposure time = 70ms
Maximum exposure time = several minutes
Opening time = 43ms

$ 6,982.00
