This assembly is a customizable F/# matched, 1" diameter, double lens assembly.
The Lens material selected will be Fused Quartz or Fused Silica depending on availability. Best used in the spectral range 250-2500nm

The CON1 lens assemblies are designed to accept collimated light and produce a focused beam at the intended target location
Please specify the required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
The required F/# must be entered in the sales order notes for efficient processing

Accessories and adapters for coupling available.
585.00
In stock
This assembly is a customizable F/# matched, 1" diameter, double lens assembly.
The Lens material selected will be Fused Quartz or Fused Silica depending on availability. Best used in the spectral range 250-2500nm

The CON1 lens assemblies are designed to accept collimated light and produce a focused beam at the intended target location
Please specify the required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
The required F/# must be entered in the sales order notes for efficient processing

Accessories and adapters for coupling available.
585.00 585.0 USD
Price Valid only in North America


A replacement 300W short arc xenon bulb.
Average lifetime = 900hrs
960.00
In stock
A replacement 300W short arc xenon bulb.
Average lifetime = 900hrs
960.00 960.0 USD
Price Valid only in North America


.
3,500.00 3500.0 USD
Price Valid only in North America


The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
8,100.00 8100.0 USD
Price Valid only in North America


.
730.00 730.0 USD
Price Valid only in North America


.
730.00 730.0 USD
Price Valid only in North America


.
730.00 730.0 USD
Price Valid only in North America

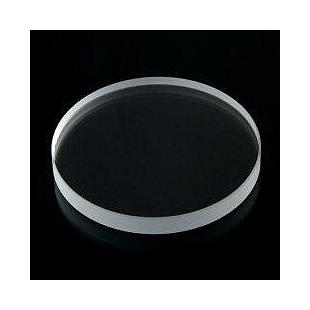

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
520.00
In stock
A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
520.00 520.0 USD
Price Valid only in North America


.
500.00 500.0 USD
Price Valid only in North America

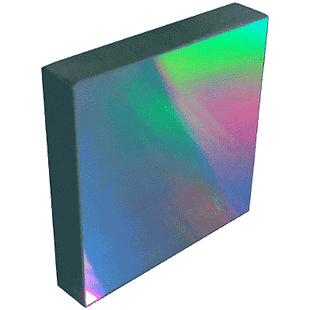

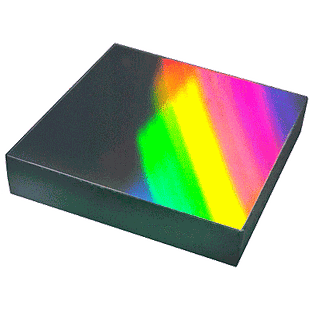

Wavelength range: 400-1600nm
Dispersion: 16nm/mm (When used with 9030 monochromator)
1,593.00
In stock
Wavelength range: 400-1600nm
Dispersion: 16nm/mm (When used with 9030 monochromator)
1,593.00 1593.0 USD
Price Valid only in North America


This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 100μm.
250.00
In stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 100μm.
250.00 250.0 USD
Price Valid only in North America


This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 16-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.
1,399.00
In stock
This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 16-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.
1,399.00 1399.0 USD
Price Valid only in North America


This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 12-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.
1,099.00
In stock
This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 12-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.
1,099.00 1099.0 USD
Price Valid only in North America


A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.
7,995.00
In stock
A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.
7,995.00 7995.0 USD
Price Valid only in North America


SciSpec is a fully featured Windows application specifically designed to control Sciencetech stepping monochromators. SciSpec is designed to control and coordinate the operation of Sciencetech modular spectroscopy components. These include:
• stepping monochromators
• motorized filter wheels for a long pass, bandpass, short pass, or neutral density filtering
• motorized beam path selection mirrors
• beam line modulators such as motorized iris or chopper
• detectors and data acquisition components such as A/D boards, lock-in amplifiers, and source meters.
• linear diode arrays
• sources such as research arc lamps, LED, and incandescent light sources

Generally, all the components in a modular spectroscopy system must be configured by wavelength to optimize the system operation. SciSpec stores and reads system configurations to provide an optimized system operation and user experience.

Requires Windows 7/10 64bit operating system
610.00
In stock
SciSpec is a fully featured Windows application specifically designed to control Sciencetech stepping monochromators. SciSpec is designed to control and coordinate the operation of Sciencetech modular spectroscopy components. These include:
• stepping monochromators
• motorized filter wheels for a long pass, bandpass, short pass, or neutral density filtering
• motorized beam path selection mirrors
• beam line modulators such as motorized iris or chopper
• detectors and data acquisition components such as A/D boards, lock-in amplifiers, and source meters.
• linear diode arrays
• sources such as research arc lamps, LED, and incandescent light sources

Generally, all the components in a modular spectroscopy system must be configured by wavelength to optimize the system operation. SciSpec stores and reads system configurations to provide an optimized system operation and user experience.

Requires Windows 7/10 64bit operating system
610.00 610.0 USD
Price Valid only in North America


28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
Spectral Response: 400 - 1200nm
Wavelength of Maximum Response: 800nm
Minimum Effective Area (HxW): 16 x 18

Quantum Efficiency (at 25 degrees): 0.04% (Typical)
Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA
1,946.00
In stock
28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
Spectral Response: 400 - 1200nm
Wavelength of Maximum Response: 800nm
Minimum Effective Area (HxW): 16 x 18

Quantum Efficiency (at 25 degrees): 0.04% (Typical)
Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA
1,946.00 1946.0 USD
Price Valid only in North America


Multialkali high sensitivity side-on PMT
Spectral range: 185-900 nm,
Peak sensitivity wavelength: 400nm
Glass UV Envelope

Photocathode Area Size 8 x 24 mm
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Circular-cage
Anode to Cathode Voltage 1250 V
Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
Luminous Sensitivity Min. 140 μA/lm
Luminous Sensitivity Typ. 250 μA/lm
Radiant Sensitivity Typ. 74 mA/W
Anode Luminous Sensitivity Min. 400 A/lm
Anode Luminous Sensitivity Typ. 2500 A/lm
Anode Radiant Sensitivity Typ. 7.4e5 A/W
Anode Dark Current (after 30min.) Typ. 3 nA
Anode Dark Current (after 30min.) Max. 50 nA
Time Response Rise Time Typ. 2.2 ns
Time Response Transit Time Typ. 22 ns
1,130.00
Multialkali high sensitivity side-on PMT
Spectral range: 185-900 nm,
Peak sensitivity wavelength: 400nm
Glass UV Envelope

Photocathode Area Size 8 x 24 mm
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Circular-cage
Anode to Cathode Voltage 1250 V
Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
Luminous Sensitivity Min. 140 μA/lm
Luminous Sensitivity Typ. 250 μA/lm
Radiant Sensitivity Typ. 74 mA/W
Anode Luminous Sensitivity Min. 400 A/lm
Anode Luminous Sensitivity Typ. 2500 A/lm
Anode Radiant Sensitivity Typ. 7.4e5 A/W
Anode Dark Current (after 30min.) Typ. 3 nA
Anode Dark Current (after 30min.) Max. 50 nA
Time Response Rise Time Typ. 2.2 ns
Time Response Transit Time Typ. 22 ns
1,130.00 1130.0 USD
Price Valid only in North America

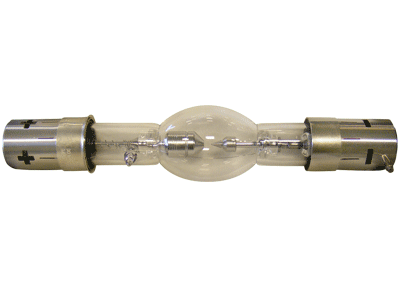

Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0mm
arc gap length: 3.8mm
Length, base to base: 205mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50…75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.
1,620.00
Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0mm
arc gap length: 3.8mm
Length, base to base: 205mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50…75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.
1,620.00 1620.0 USD
Price Valid only in North America


This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.
957.00
In stock
This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.
957.00 957.0 USD
Price Valid only in North America


This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.
30.00
In stock
This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.
30.00 30.0 USD
Price Valid only in North America
