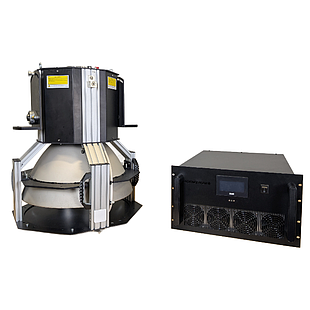

A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

Power Requirements:
200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
Includes hardwired 6 ft power cable with L15-50P termination.
Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)

$ 36,999.00

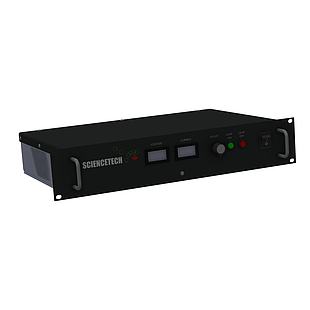

A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.

$ 749.00

The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
- A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
- A webpage-based camera for safely viewing inside the HFSS support structure
- Alignment lasers for easily locating the target plane of the radiative modules.

$ 949.00

A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

Key Dimensions
Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
Interior Dimensions (H x D)[mm]: 1550 x 1550
Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor

$ 23,699.00

An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.

$ 649.00

A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

Power Requirements:
380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
Includes one L16-30 power cable.

$ 36,999.00

An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

Lateral Adjustment [mm]: ±31
Rotational Adjustment [°]: ±15
Tilt Adjustment [°]: ±30

Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.

$ 3,099.00

A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.

$ 949.00

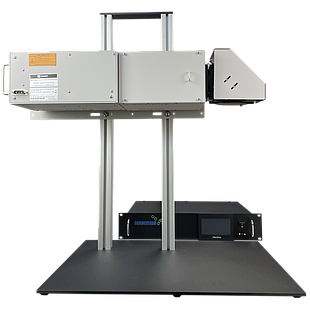

Downward facing stand for the XLH- series lamp housing .
This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward facing stand.

$ 899.00

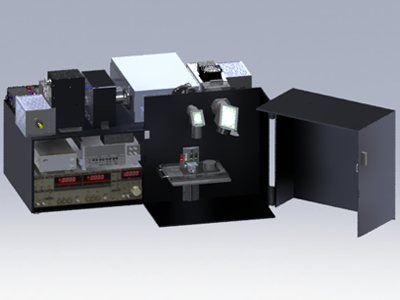

The PTS-2-QE system allows an overall "external" quantum value measurement, which is considered the most important factor in cell testing. It includes all the Spectral Response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of Quantum Efficiency.

The PTS-2-QE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency - IPCE
- AC and DC measurement mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector.
EQE and IV measurement capabilities verified against a solar reference device certified by a ISO 170205 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site.

A preconfigured computer with software is included with the system. An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system also includes 1 IEC 60320 C5 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 46,000.00

The PTS-2-IQE system allows an overall external quantum efficiency value measurement as well as internal quantum efficiency measurements using an integrating sphere. It includes all the spectral response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of quantum efficiency.

The PTS-2-IQE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency/IPCE
- Internal Quantum Efficiency
- Reflectance
- AC and DC Measurement Mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. EQE/IQE and IV measurement capabilities verified against a solar reference device certified by a ISO 170205 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 50,000.00

The PTS-1-SR system includes a lamp and monochromator for a tunable light source, which is coupled to a high sensitivity source meter with measurement software. Designed for researchers who have limited budgets but want to start work immediately, this allows the ability to do baseline studies until additional funding for the full QE or CPM system becomes available.

The PTS-1 Includes the capability to perform the following measurements:

- Spectral Response
- External Quantum Efficiency - IPCE, without Optical Bias
- AC and DC Measurement Mode

Each PTS-1 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. SR measurement capabilities verified against a solar reference device certified by a ISO 170205 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 43,000.00

The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm

$ 625.00

A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,050.00

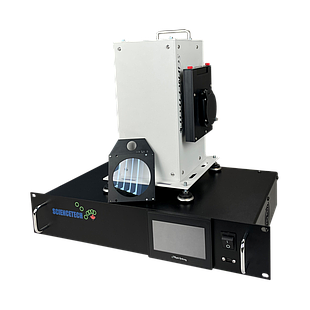

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 0.1-0.5m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 118,000.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.

$ 74,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.

$ 60,800.00
