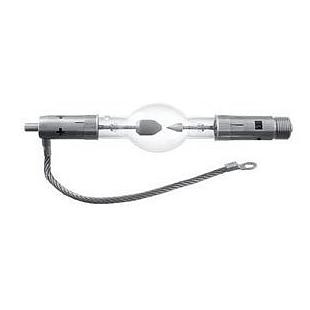

Xenon Short Arc Lamps

6500W Xenon arc lamp
Ozone Free
Compatible with Sciencetech Ultra-High Power Lamp Houses.

Nominal Wattage 6500 W
Nominal Voltage 39 V
Current (A) 165 A
Current Control Range (A) 133-173 A

Physical attributes
Base Anode SFAx30-14
Base Cathode SFa30-7.9

$ 2,826.00

$ 2,014.00

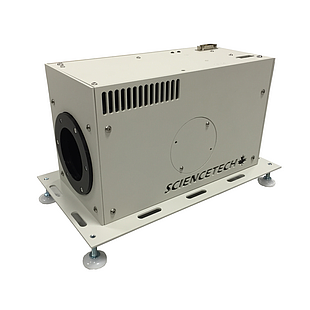

This lamp housing design is optimized for 300W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 300W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

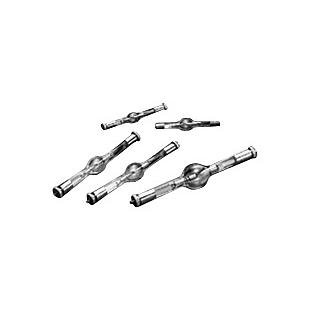

Replacement 150W Short arc Xenon lamp.
Vertical or Horizontal operation.

$ 460.00

A 300W xenon short arc lamp bulb, using a fused silica glass envelope. Please note that this lamp produces ozone.

$ 1,350.00

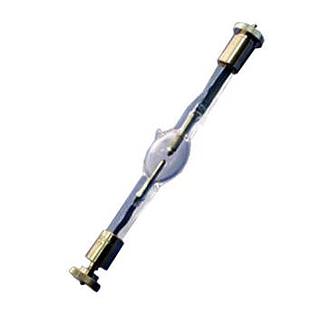

A 3000W (3kW) xenon arc lamp bulb replacement.

$ 1,925.00

A replacement 300W short arc xenon bulb.
Average lifetime = 1000hrs

$ 960.00

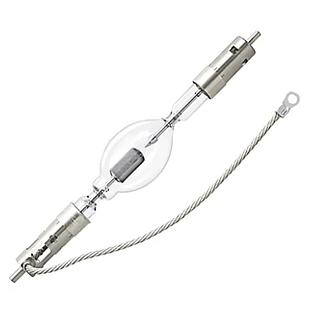

Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0mm
arc gap length: 3.8mm
Length, base to base: 205mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50…75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.

$ 1,620.00

This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.

$ 957.00
